|Maximum weight of the specimen:||100 kg||Maximum size specimen:||100-80*100cm|
|drop height:||300~1500mm||Motor power:||0.37KWA|

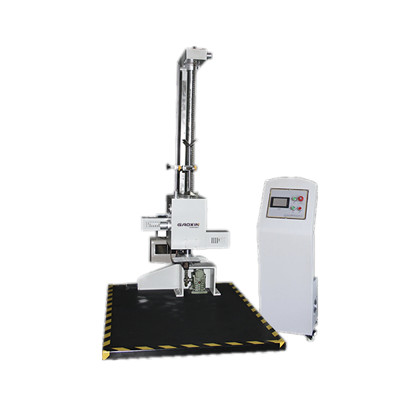

Single Column Electromagnetic Free Fall Drop Tester Heavy Load Package Drop Testing Machine
|Alternative name||Power Battery Drop Free Testing Machine|
|Function||Test packaging material, battery (large power battery)'s damaged degree when free drop from certain height|
|Type||Single wing electromagnetic type|
|Corresponding test standard||GB/T4857.5-92, ISO02448-1972E, QC/T743, QC/T744|
is used to test the product packaging by the fall of the damage, and assessment of transport handling process, impact resistance, mainly to meet the product packaging to withstand the conditions of transport capacity, so as to improve and perfect the packaging design.
1 single wing drop tester to do free drop test of the package surface, angle, edge, with digital height indicator and height tracking decoder, which can accurately give the product drop height, and the pre-set drop height error of less than 2%, or 10 mm.
2 single wing drop test machine using a single-arm and double column structure, with electric reset, electronically controlled drop and electric lift device, easy to use. Unique hydraulic buffering device greatly improve the life of the machine, the stability and safety of single-arm set can be easily placed on the product, the drop angle impact surface floor plane angle error is less than 5 degrees.
|Height of drop free||300-1500mm (or customer specified)|
|Max. Weight of specimen||100 (or customer specified)|
|Max. Dimension of specimen||1000 ×800× 1000mm|
|Base panel||1700 ×1200× 20mm|
|Fell flat error||≦1°|
|Drive type||Single wing electromagnetic|
|Display of height||LED digital data display; 0.01mm|
|Motor capacity (KWA)||0.37|
|Power||380V, 50/60HZ, 15A|
Dongguan Gaoxin Testing Equipment Co., Ltd is a high tech company specialized in producing kinds of testing equipment which was established in 2007, located in manufacturing centre of China-Dongguan City where is close to Guangzhou city and Hong Kong.
(1) Speciality in testing equipment
(2) Various products to choose from
(3) Accept customization
(4) Excellent after-sale service
Our products mainly divided into:
1. environment simulation test chamber
2. battery safety testing machine
3. Footwear and leather testers;
4, rubber and plastic tester
5, tensile tester
6. paper and packaging tester
7. cable tester
After sale service:
1. operation manual and video, till user can operate the testing machine masterly.
2. one year warranty
3. free operation training.
4. professional engineer to solve any problems or confusion about the test equipment.
