Computer Display Steel Wire strength Universal Testing Machine, UTM

Computer Display Steel Wire strength Universal Testing Machine, UTM

Ürün ayrıntıları:

Place of Origin: Guangdong, China (Mainland)
Marka adı: GAOIXN
Sertifika: ISO 9001:2008; QS-9000; CE
Model Number: GX-8001

Ödeme & teslimat koşulları:

Minimum Order Quantity: 1set
Fiyat: negotiation
Packaging Details: Non-fumigation wooden box
Delivery Time: 15 work days
Payment Terms: FOB Shenzhen, L/C, T/T, Western Union,
Supply Ability: 50 sets per month
En iyi fiyat İletişim

Detay Bilgi

Güç: Servo Tip: UTM
sensör: Celtron Yük Hücresi Kapasite: 500, 1000, 2000kg
Kesinlik: ±0.5% Hız testi: 25-500 mm/dak
Vurgulamak:

tensile test equipment

,

universal testing machine

Ürün Açıklaması

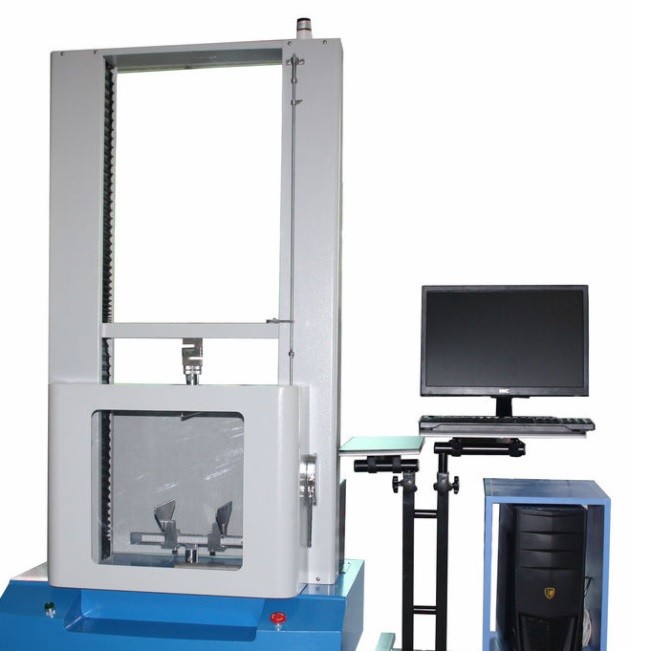

Computer Display Steel Wire strength Universal Testing Machine, UTM



Specifications:

Model

GX-8001

Maximum load

500, 1000, 2000kg (optional)

Accurate

1 grade

Measuring accuracy

The value ±1% / the value±0.5%

Tester resolution

Max load 1/100000, constant the resolution

Effective testing width

400mm (or can be widened as customers requirement )

Effective tensile space

650,800,1000mm (or can be increased the height according to customers requirement)

 Testing speed

From 0.5 to 1000mm/min

Unit

kgf, gf, lbf, N, kN, Mpa, pa(optional)

Accruacy of displacement measurement

Tolerance: ±0.5%

Accuracy of measured deformation

Tolerance:±0.5% (according to requirement of customer to choose the larger or small deformation)

Safety

Electronic-limit protection

Testing plat form moving  device

Fast /slow( two speeds to control) ,can jog

Return Back

Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation

Overload protection

 Overload 10%, automatic protection

Fixture

One set of tensile clamp

Volume

800*1000*2500mm (L*W*H)

Motor

servo motor and drive

Power

220V,50HZ or as the requirement

Wattage

0.66kW (different demand of force with different motor)

Weight

 300 Kg(approx)


Description:


A universal testing machine (UTM), also known as a universal tester,materials testing machine or materials test frame, is used to test the tensile strength and compressive strength of materials. The "universal" part of the name reflects that it can perform many standard tensile and compression tests on materials, components, and structures (in other words, that it is versatile).



Applicable industry:

Universal testing machine(UTM) is widely used in controlling the quality; Rubber & Plastics; metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production; textile fiber; wire and cable; packaging materials and foodstuffs; instrumentation; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research Laboratory; inspection arbitration, technical supervision departments; building materials, ceramic; petroleum & chemical; other industries.

Pictures:

Computer Display Steel Wire strength Universal Testing Machine, UTM 0

Computer Display Steel Wire strength Universal Testing Machine, UTM 1

Computer Display Steel Wire strength Universal Testing Machine, UTM 2



 Company introduction:



Dongguan Gaoxin Testing Equipment Co., Ltd is a high tech company specialized in producing kinds of testing equipment which was established in 2007, located in manufacturing centre of China-Dongguan City where is close to Guangzhou city and Hong Kong.

Our advantages:

(1) Speciality in testing equipment

(2) Various products to choose from

(3) Accept customization

(4) Excellent after-sale service



Our products mainly divided into:



1. environment simulation test chamber

2. battery safety testing machine

3. Footwear and leather testers;

4, rubber and plastic tester

5, tensile tester

6. paper and packaging tester

7. cable tester



After sale service:



1. operation manual and video, till user can operate the testing machine masterly.

2. one year warranty

3. free operation training.

4. professional engineer to solve any problems or confusion about the test equipment.



Computer Display Steel Wire strength Universal Testing Machine, UTM 3Computer Display Steel Wire strength Universal Testing Machine, UTM 4
